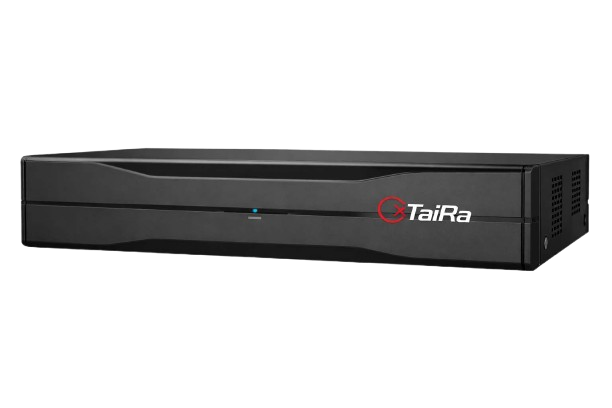

TNVR-8CH-4K
TNVR-8CH-4K
Adopt the new Vstar GUI , easy to operate and run
smoothly
Support intelligent coding VSMart, greatly
reducing storage space
Improved compatibility for hard disks, and up to
10TB
Supports multiple intelligent analyses such as
motion detection, regional intrusion, tripwire
detection, passenger flow statistics, scene
changes, and occlusion alarms;
Support the preview, storage and playback of 4K
HD network video;
Support built-in speakers, realize real-time
monitoring of video recording, support voice alarm;
| Specifications | |
| Model | |
| Model | TNVR-8CH-4K |
| Video and Audio | |
| IP Camera Input | 8 Channel |
| Audio Input / Output | IPC Audio Input / Audio Output through HDMI |
| Built-in Speaker | Support |
| Bandwidth I/O | 80Mbps / 80Mbps |
| Display | |
| Interface | 1 HDMI, 1 VGA |
| HDMI Resolution | 3840×2160@30Hz / 2560×1440@30Hz / 1920×1080 / 1440×900 / 1280×1024 / 1280×720 / 1024×768 |
| VGA Resolution | 1920×1080 / 1440×900 / 1280×1024 / 1280×720 / 1024×768 |
| Max Decoding | 1CH 4K @15fps; 8CH 5.0MP / 4.0MP / 1080P / 960P / 720P @25fps |
| Multi-screen Display | 1 / 4 / 5 / 6 / 7 / 8 / 9 |
| OSD | Camera Name & Time, Recording, Alarm Detecting, Remote Connection, Volume, Channel Number |
| Recording | |
| Compression | H.265 / H.264 |
| Resolution | 1CH 4K; 8CH 5.0MP / 4.0MP / 1080P / 960P / 720P |
| Record Mode | Manual, Schedule, MD |
| Video Detection and Alarm | |
| Trigger Events | Recording, Snapshot, PTZ, Voice, E-mail, Client, Buzzer |
| Video Detection | Motion Detection, No Video Detection |
| Playback and Backup | |
| Sync Playback | 1CH 4K, 1CH 5.0MP, 1CH 4.0MP, 1CH 3.0MP, 2CH 1080P |
| Search Mode | Channel Number / Recording Type / Date |
| Playback Function | Day View, Hour View, Back Step, Rewind, Pause, Play, Fast Forward, Slow, Step, Full Screen, Snap, Sound On/Off, Zoom |
| Backup Mode | FAT32 USB Device / Network |
| Network | |
| Interface | 1 RJ-45 Port (10/100Mbps) |
| Network Function | TCP/IP, DHCP, UDP, SMTP, NTP |
| Smart Phone | iPhone, Android |
| Interoperability | ONVIF 2.4 |
| Storage | |
| SATA | 1 SATA Interface |
| Capacity | Up to 10TB |
| General | |
| Power Supply | DC 12V |
| Consumption | ≤ 10W (Without HDD) |
| Working Temperature | -10°C ~ 55°C |
| Working Humidity | 10% ~ 90% |
| Dimensions | 260 × 47.5 × 225 mm |
| Weight | ≤ 1.0kg (Without HDD) |
